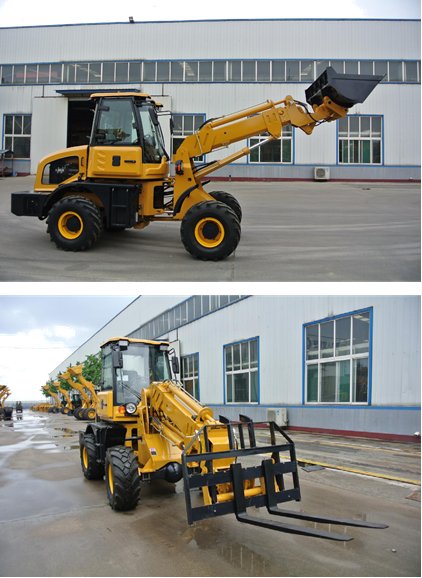

The telescopic loader is used for agriculture and farm .
It can load grass by fork.
And load the cargo.
And it can used in construction like crane.
1)Hard Mn alloy steel Q345B was used for 80% chassis.
2)1600kg Max loading capacity with 4.5m lifting height
3)Chinese famous brand xinchai engine europe 3 36.8KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake
7)Famous brand Camel battery with Big AH
8)23.5/16 Tires
9) warm Cabin with luxury seat, Adjustable steering wheel, heater
Model | 1.6 ton telescopic loader with xinchai engine | |
Model | xinchai engine | |
Rated output(kw) | 36.8KW | |
Engine | Type | In line,vertical,water cooled,four-stroke |
Number of cylinders | 4 | |
Method of starting | Electric | |
Lifting capacity(kg) | 1600kg | |
Lift height(mm) | 4550mm | |
Dumping height | 3800mm | |
Lift TIME(mm) | 3S | |
Operate weight (kg) | 4300kg | |
Axle-base(mm) | 1320mm | |
TIRE | 23.5/70/16 | |
Maximum speed | 40km/hr | |
Drive Mean | Four Wheel drive | |
Maximum gradeability | 30 | |
Torque converter model | YJ265 | |
dimension | 6000*1780*2680mm | |
