A Standard Configuration and Feasure
1) Hard Mn alloy steel Q345B was used for 80% chassis.
2) 2.8ton Max loading capacity with 3.4m lifting height
3) Weichai Deutz engine 92KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake
7Famous brand Camel battery with Big AH
8)16/70/24tires
9) warm Cabin with luxury seat, Adjustable steering wheel, Heater
B.Advantage
1.Rops approved:the cabin space is 30% larger than normal.
2.xinchai engine :powerful ,low emission ,low fuel consumption,low noise ,moneysaving.
3. Oscillating rear alxe for best stability.
4.Extremely strong articulation joint
5.low boom pivot for perfect view
6.sliding elements free of wear.
7.very strong carriage fast and safe hydraulic coupling of tools .
8.versatile due to big range of tools and optional equipment.
C Specification
Model | 2.8 ton capacity wheel laoder | |
Engine | Model | Weichai Deutz engine |
Rated output(kw) | 92 KW | |
Type | In line,vertical,water cooled,four-stroke | |
Number of cylinders | 6 | |
Method of starting | Electric | |
Lifting capacity(kg) | 2800kg | |
Lift height(mm) | 3400mm | |
Lift TIME(mm) | 3S | |
Operate weight (kg) | 6500kg | |
Bucket seize | 1.5m3 | |
wheel-base(mm) | 2420mm | |
TIRE | 16/70/24 | |
Maximum speed | 35km/hr | |
Drive Mean | Four Wheel drive | |
Maximum gradeability | 30 | |
Torque converter model | YJ280 | |
dimension | 6240*2200*2920mm | |
D Quotation
PRICE :13,639 € (Include 1 set of standard bucket)
Hydraulic joystic
Heater
Rear camera
Three hydraulic line(it can be used for sweeper or other hydraulic attachment)
Heavy hub axle
Led light
And you can choose the color as you like.

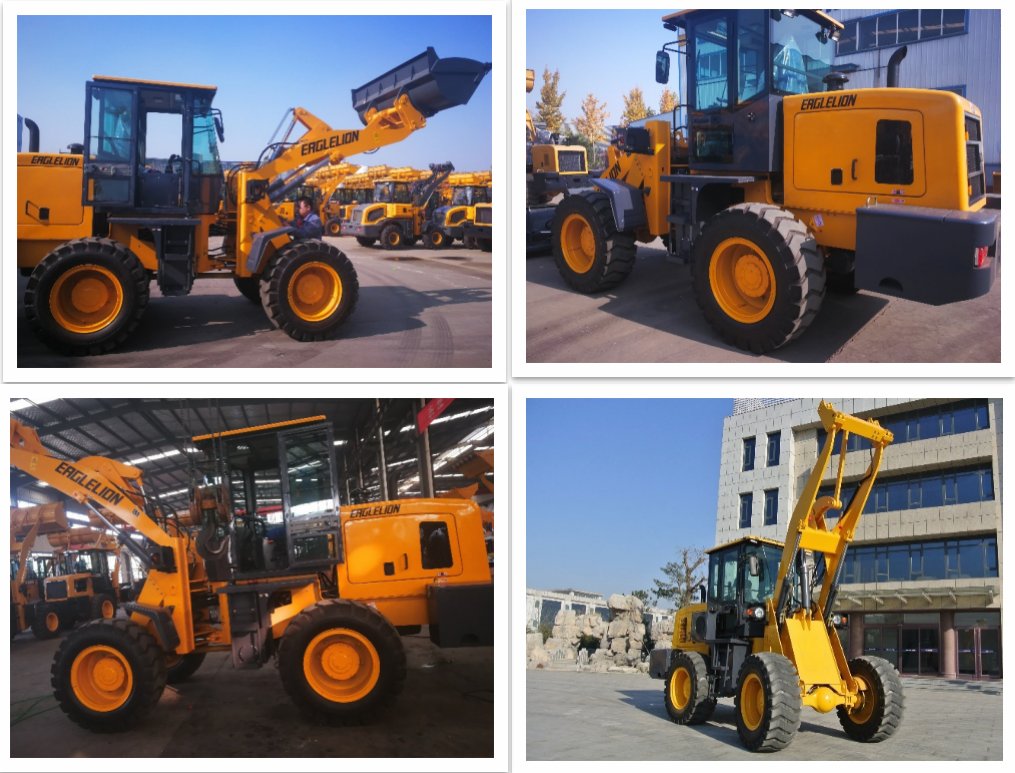

Detailed pictures for 2.8 ton wheel loader
