Product Feature And Advantage
1. Small size and easy to transport, could be loaded onto light truck or small trailer, two sets could be loaded into one 20GP container to save freight cost.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3. Famous brand hydraulic system parts ensure the stable quality.
4. equipped with double fuel filter to guarantee fuel purity to protect engine
5. boom deflection design meet narrow work condition, reinforced rubber track to protect road
6. extend hydraulic line for various attachments.

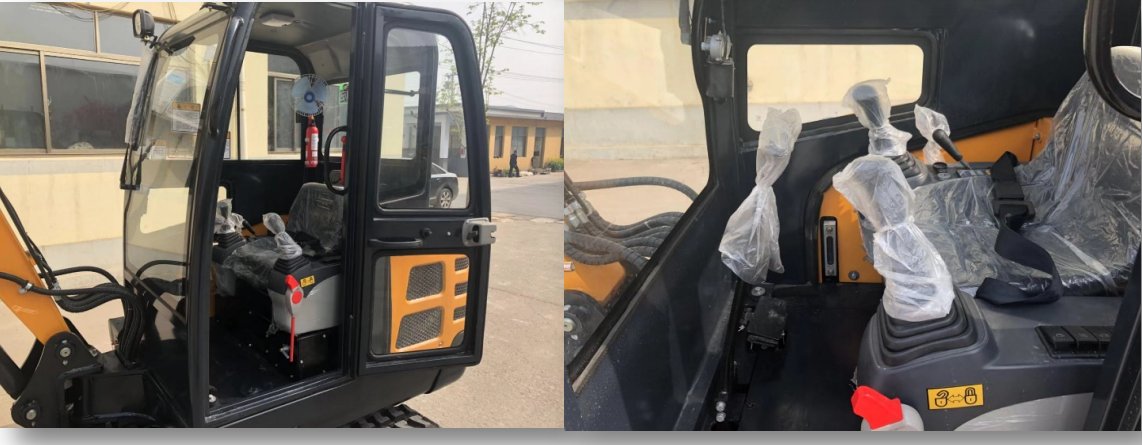

7. comfort seat make operator easy to work.
8. It could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Technical Specification
Engine
Model | Laidong 3TE30 22.1kW/2200rpm |
Type | Electronic injection, water cooled, natural intake |
No. of cylinder | 3 |
Main Performance
Swing Speed | r/min | 12-14 |
Traveling Speed | km/H | 2.8 |
Grade ability | % | 70(35°) |
Traveling Tracking Force | kN | 15 |
Bucket Digging Force | kN | 11.5 |
Arm Digging Force | kN | 9.3 |
Hydraulic System
Hydraulic system working pressure | Mpa | 16 |
Hydraulic Pump | Gear Pump | AHWY |
Hydraulic pump flow | L/min | 2×12+5 |
Swing Motor | Eaton | |
Traveling Motor | Eaton | |
Fuel Tank Capacity | L | 26 |
Hydraulic Tank Capacity | L | 27 |
Overall Dimensions
Overall Length | mm | 4080 |
Overall Width | mm | 1300 |
Overall Height | mm | 2280 |
Ground clearance | mm | 490 |
Track length | mm | 1630 |
Track width | mm | 250 |
Undercarriage width | mm | 1270 |
Undercarriage ground clearance | mm | 235 |
Dozer Blade | mm | 1270×240 |

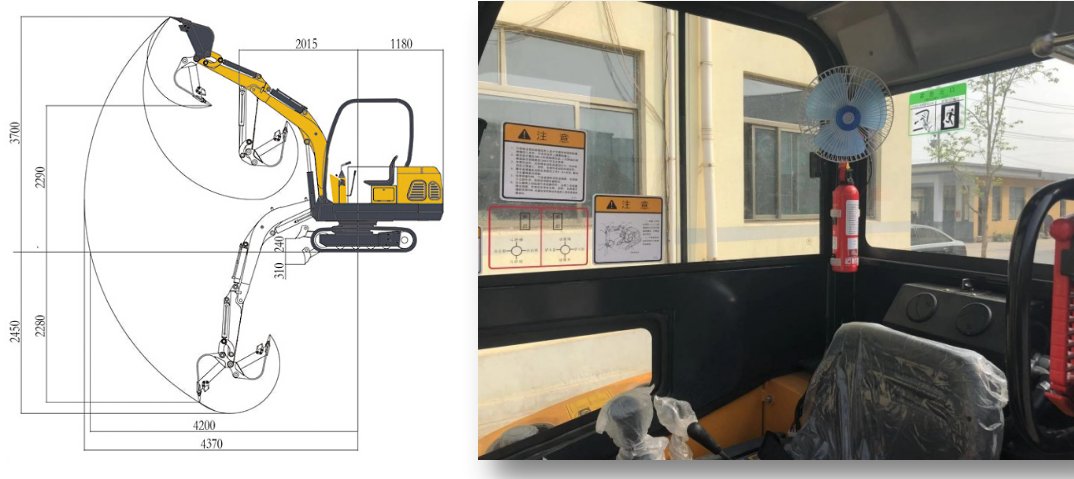

Operation parameters
Operation Weight | KG | 2200 |
Bucket Capacity | m3 | 0.1 |
Max. Digging Radius | mm | 4350 |
Max. Digging Depth | mm | 2450 |
Max. Digging Height | mm | 3700 |
Max. Dumping Height | mm | 2330 |
Max. Dozer Cutting | mm | 310 |
Max. Dozer Lifting | mm | 240 |
Boom Deflexion (Left/Right) | ° | 70/50 |
Tail Swing Radius | mm | 1180 |
Front Min. Swing Radius | mm | 2020 |
Price: 12,100 €/ set ( including cabin ) FOB QINGDAO PORT
1X20GP container can load : 2 sets
Lead time: 15 days after down payment.
