I．Basic overview
● Adopting China made YTO 4110 Turbo engine power system, 81KW power, low emissions.reliable.Cummins engine optional.
● The technology-leading slewing bearing structure design, hydraulic steering, rear axle swing compared to traditional form, lower failure rate, easy to maintain.
● Walking system uses SHANTUI torque converter transmission,Brand awareness, reliable performance.
● MEITONG brand wet brake axle ,Maintenance free axle,same model with 2cbm LHD,make it more handy to face hard conditions.
● Operating system adopts pilot control, make work easier operation and higher efficiency.
● exhaust system uses a water filtration system, with a Canadian oxidation catalyst device greatly reducing the air pollution.
● Thickened reinforced frame, the bucket shovel blade made of high strength alloy steel, wear shear, V type structure, reducing the scooping resistance and longer life.
● Adopt smooth anti puncture narrow tire.Tire protection chains optional.
● The machine can make shoveling, loading, transportation and unloading in one job, have a smaller turning radius, compact structure, convenient operation, high efficiency operation for mining ore and Tunneling mucking, and site preparation work and construction of roads material transportation and other auxiliary operations.
● Optional:Wheel protection chains;Lengthen boom for high dump
Side dump bucket;Breaking hammer.
II. Specification
Model | ELCY-15 |
Main specifications | |
Bucket capacity (m3 ) | 1.5 |
Rated load (t) | 3.0 |
Tipping Load(t) | 7.0 |
Weight (t) | 9.5 |
Lifting time of the arms (s) | ≤3.7 |
The sum of three items(s) | ≤9.2 |
Forward gear（km/h） | I 0-4.2 II 0-9.7 |
Reverse gear | I 0-4.2 II 0-9.7 |
Max. climbing gradient | 20° |
Min.ground clearance(mm) | 290 |
Dimensions | |
Overall dimension (mm) | 6870*1600*1900 |
Wheel base (mm) | 2750 |
Wheel tread(mm) | 1270 |
Max. dumping height(mm) | 1325/2100 |
Dumping reach (mm) | 940 |
Min.turning radius(mm)outside | 4670 |
Diesel engine | |
Engine model | YTO LR4M3Z-22/ CUMMINS 4BTA3.9-C110 |
Engine type | In-line,water-cooling,4-stroke, 4cylinder,direct-injection |
Rated power(kw) | 81 |
Rated speed (r/min) | 2200 |
Maximum torque /speed(N.m/rpm) | 420/1300 |
Total exhaust of cylinder(L) | 3.9 |
Type of starting | Electric start |
Transmission system | |
Torque converter | |
Model | SHANTUI / LIUGONG |
Type | Single stage, three elements |
Gearbox | |
Model | SHANTUI / LIUGONG |
Type | Fix counter-shaft, power-shift |
Axle and tire | Wet brake axle |
Type of main reducer | Multi disc friction brake |
Size of tire | 12.00-24 |
Working device of hydraulic system | |
Model of working pump | 2063 |
Nominal displacement(ml/r) | 63 |
Multi-way directional valve | CHANGJIANG |
Steering system | |
Type | Load-sensing hydraulic steering |
Displacement(ml/r) | 250 |
Max input pressure(Mpa) | 16 |

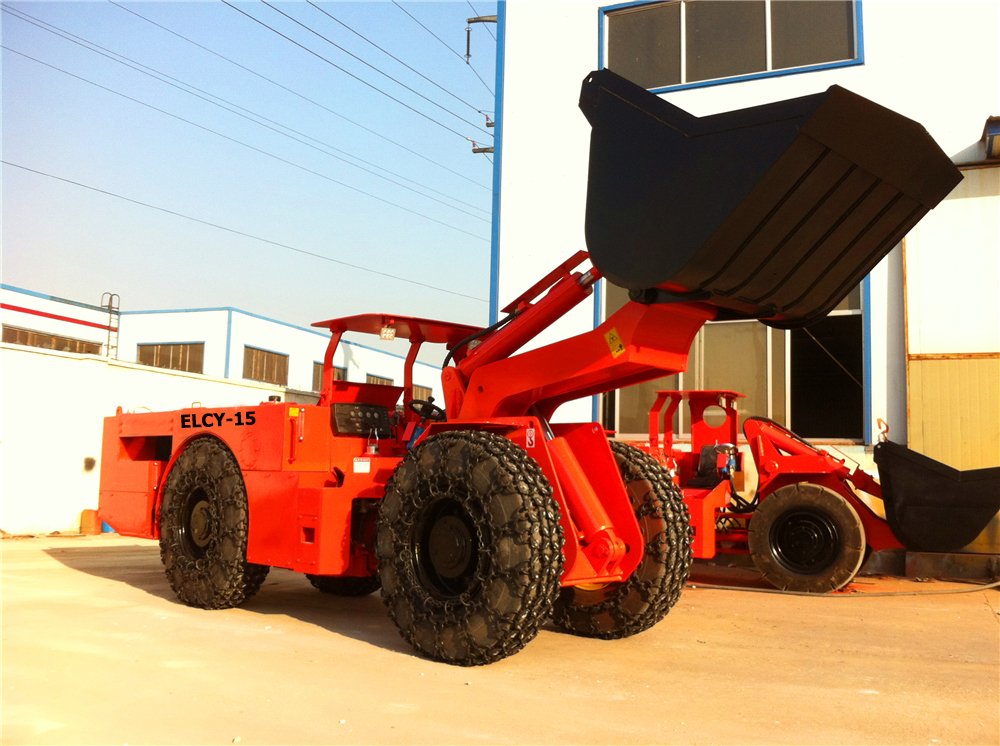

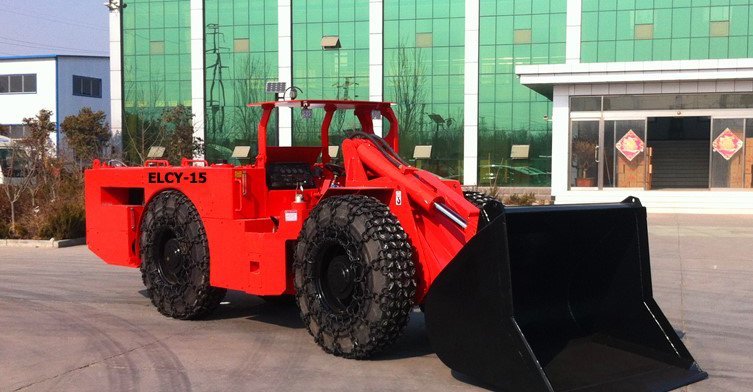

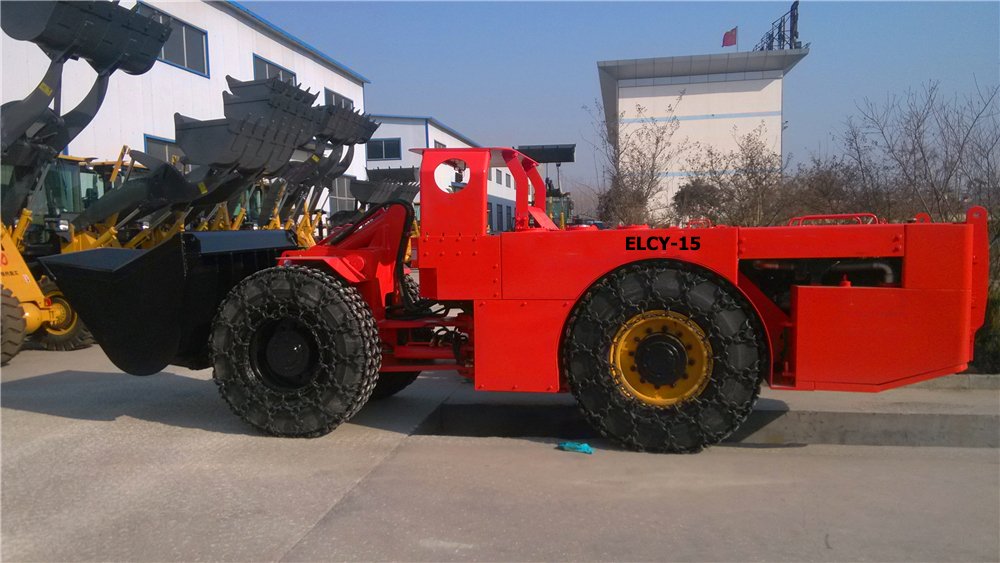

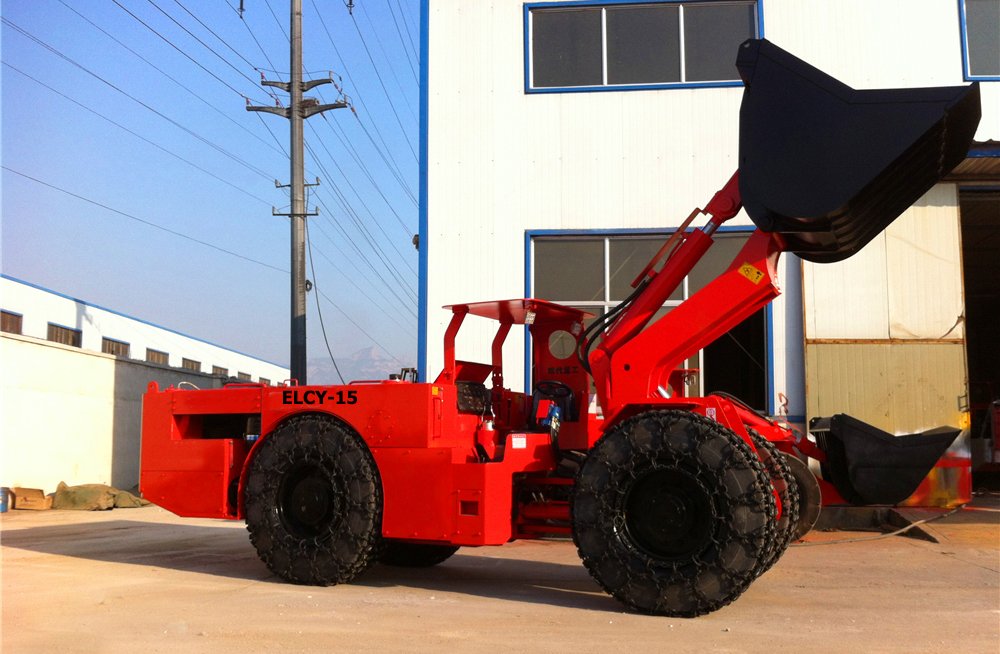

III. Photo and Details

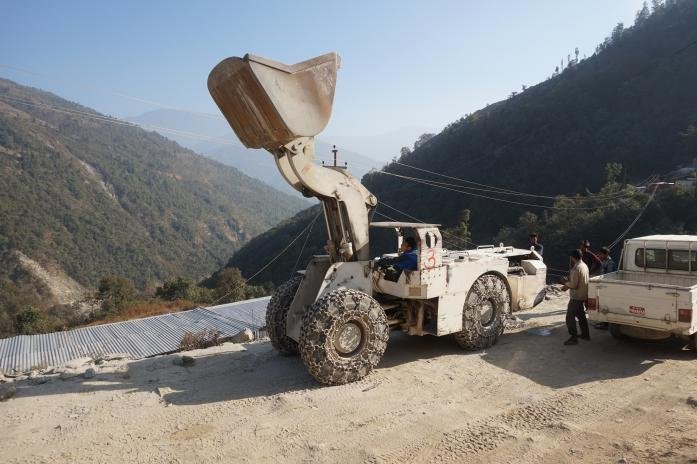

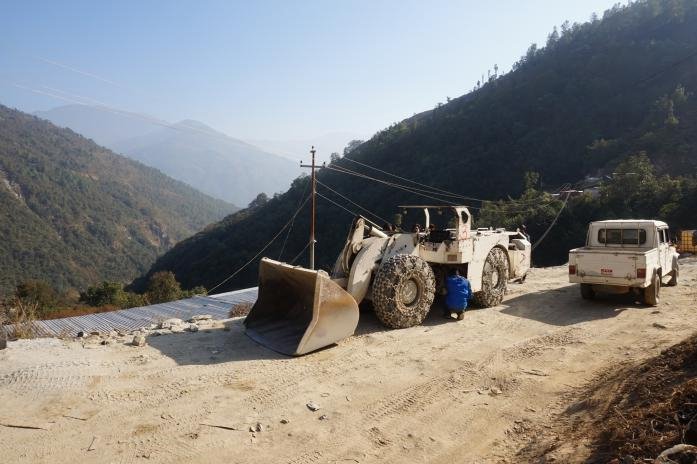

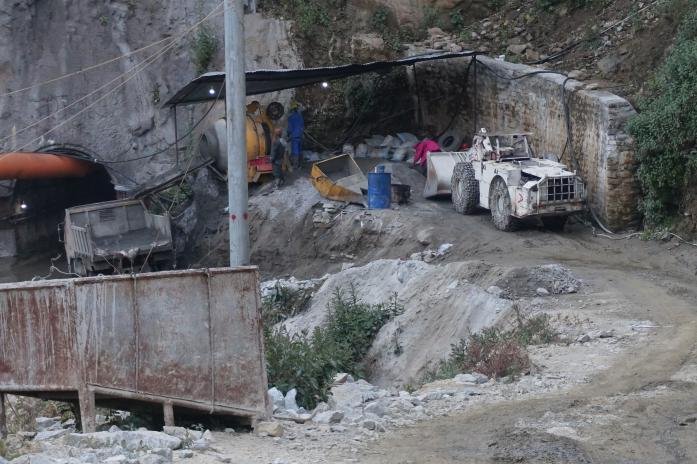

Cases:
